Double force all‑steel variable clamps (GSV)
Product details
- End fasteners can be loosened without tools

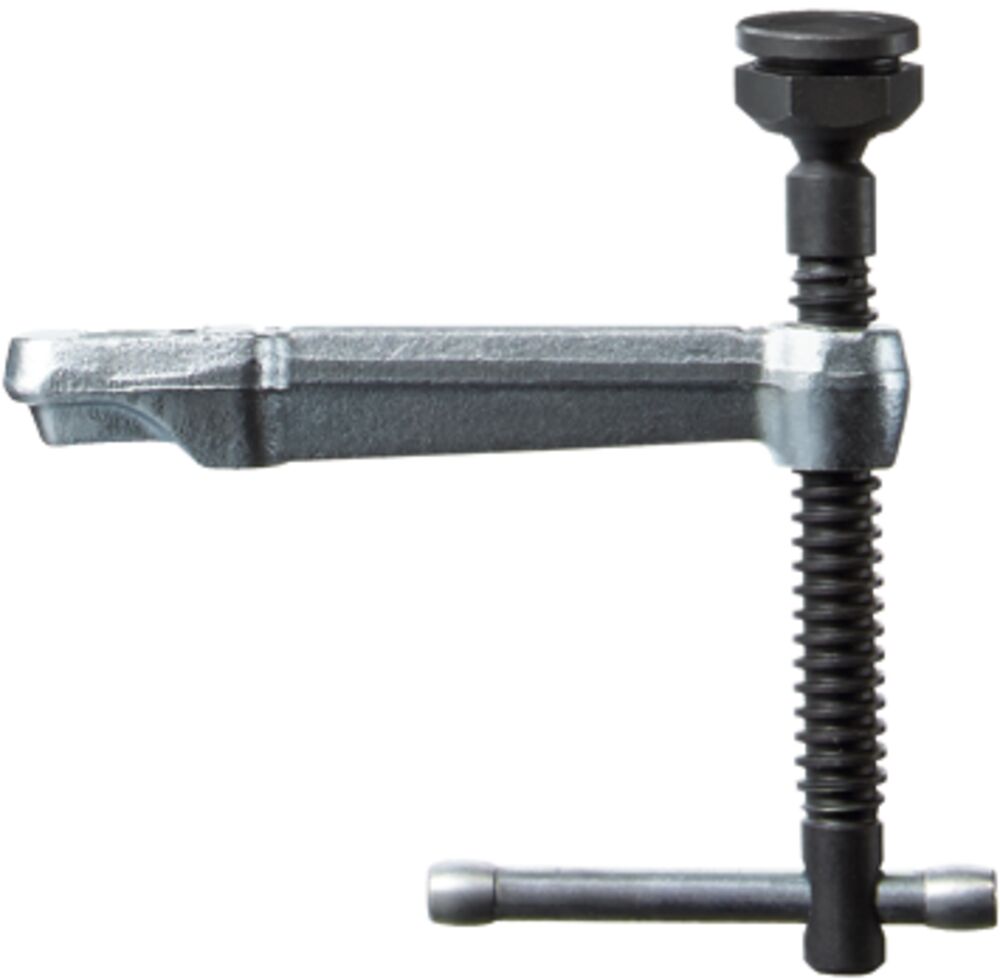

- Interchangeable sliding arms
- BESSEY MorPad – extends tool life
- Tempered spindle is sturdy and wear resistant
- Wooden handle, lever handle T Bar add-on arms
- Choice of smooth faced pad (STD), rough faced or grooved
- Add arms, different pads and configure to your specific needs
= Spare parts available
| Order number | Clamping capacity | Throat depth | Rail profile | Clamping force | Approx. weight |
| inches | inches | inches | lbs | lbs | |
|---|---|---|---|---|---|
|
GSV300M
|
118 | 5 1/2 | 1 3/16 x 5/8 | 2000 | 28.62 |
- Metal construction
- Carpentry and woodwork
- Shell construction
- Locksmith work
- New flexibility with large clamping widths
- Use the product only in its original condition.
- Use the product only for its intended purpose. Improper use can cause personal injury or property damage.
- Wear safety goggles to protect your eyes.
- Wear protective gloves to protect your hands.
- Wear safety footwear to protect your feet.
- The handle must always be free of oil and grease to prevent slipping.
- Keep the product out of reach of children.
- Small parts must not be swallowed or inserted into body openings.
- Check the product for damage before each use and make sure that all moving parts are working properly.
- A damaged product must not be used.
- Follow the care instructions for each product – see www.bessey.de.
- Use only original BESSEY spare parts.
- The Clamping tool must not be used for lifting, pulling or leaning.
- The clamping tool must not be used to secure cargo during transportation.
- The clamping tool may only be tightened by hand without any additional aids.
- The clamping tool must not be used for permanent installation.
- Regularly check that the end stop is working properly when using clamps.
- Regular maintenance is essential to ensure a secure hold and prevent the sliding arm from slipping.
- Clean the rails using a suitable solvent to remove dirt and debris.
- Keep the rail free of contaminants such as grease, oil, dried glue, wax, and silicone-based release agents, as these can affect performance.
- Clean and oil the spindle regularly.
- Clean and oil the pressure plate regularly.
- Regularly clean and oil the spindle to maintain smooth operation and prevent wear.
