STE Series

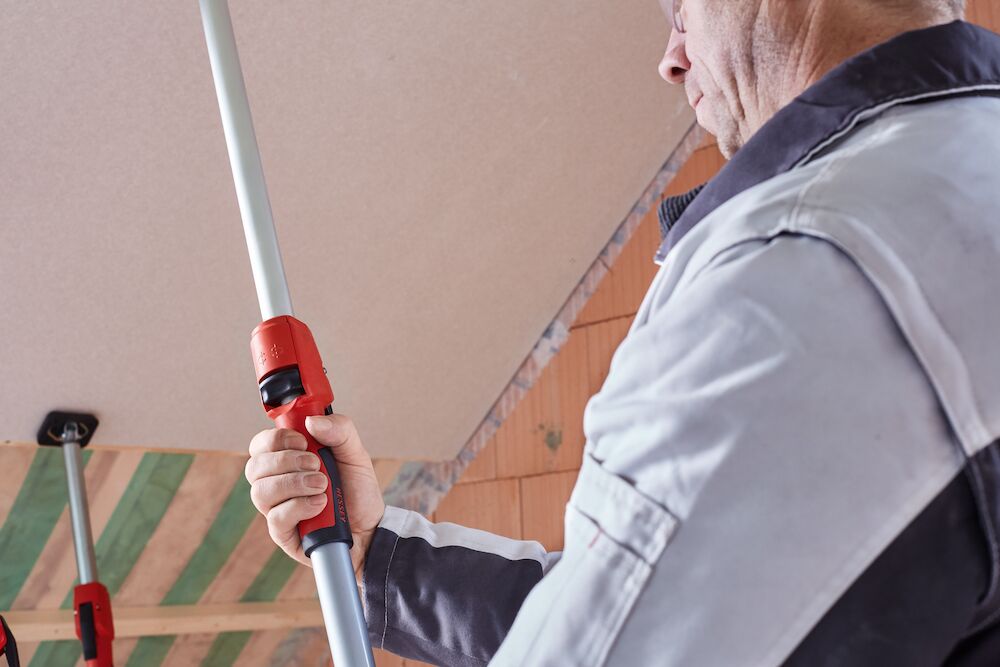

The STE Telescopic Support Rods are a versatile temporary support solution designed to hold up materials securely during installation, assembly, and remodeling projects.
The STE system is ideal for supporting cabinets, drywall, panels, trim, crown molding, dust barriers, and other materials during installation.
Yes. The STE system can be used in multiple orientations with the appropriate accessories to provide temporary support where needed.

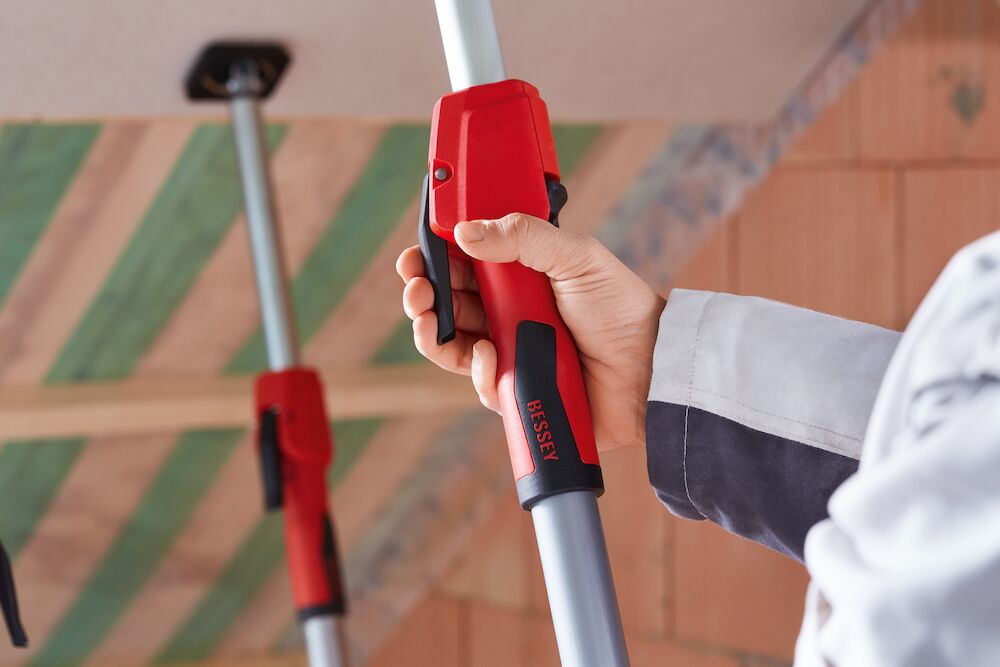

The STE features a quick-slide adjustment mechanism for fast positioning, a pump handle for precise, controlled tightening, and rotational adjustment for final fine tuning.

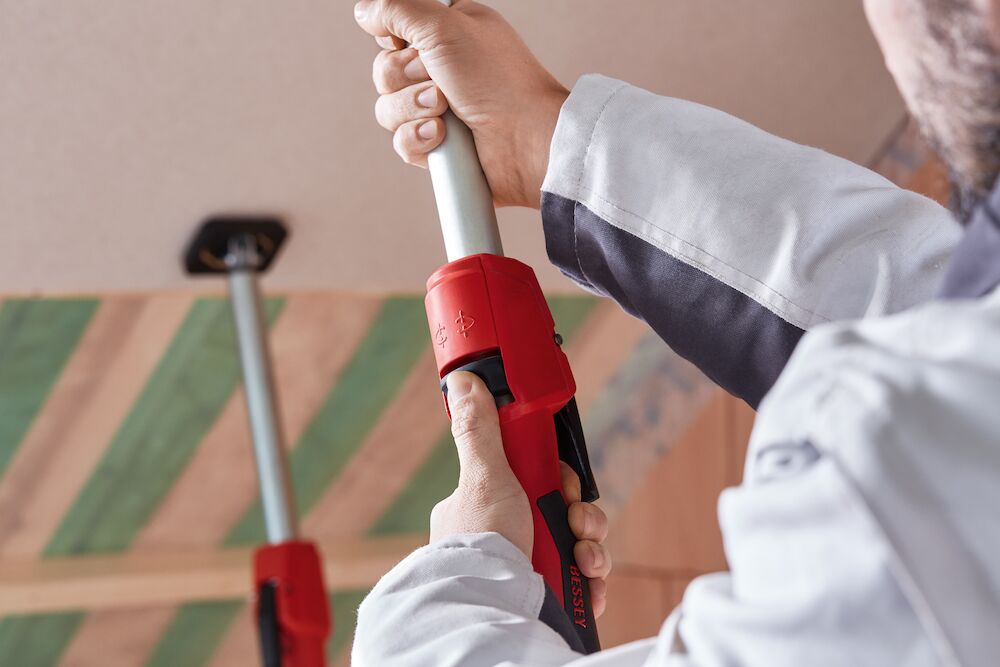

Yes. The integrated pump handle allows for convenient one-handed operation while positioning materials.
The STE provides reliable temporary support with holding capacities that vary depending on the model, extension length, and application.
| Product Number | Adjustment Range (in) | Clamping Force at min. extension (lbs.) | Clamping Force at max. extension (lbs.) | Approx Weight. (lbs.) |
| STE24 | 16-22 | 770 | 770 | 5.00 |
| STE80 | 47-78 | 770 | 396 | 6.80 |
| STE98 | 58-98 | 770 | 350 | 7.46 |
| STE118 | 67-118 | 770 | 240 | 8.14 |
| STE145 | 82-145 | 770 | 140 | 9.77 |
Yes. The swiveling support pads help accommodate angled or uneven surfaces for improved stability.
Yes. The modular accessory system allows users to customize STE Support Rods for a variety of applications. All STE accessories are compatible with every STE Support Rod, with the exception of the STE-TP Small Tripod, which is designed exclusively for the STE24.
No. The STE Support Road is designed as a temporary support tool for installation and assembly work.
The STE telescopic support system offers faster adjustment, one-handed operation, versatile accessories, and professional-grade durability for demanding jobsites.
