BESSEY Cabinetry Clamp, Face Frames

BESSEY introduces the cabinetry clamp. A tool that works like a second set of hands to align work and to create a solid location for drilling into face frame cabinets.

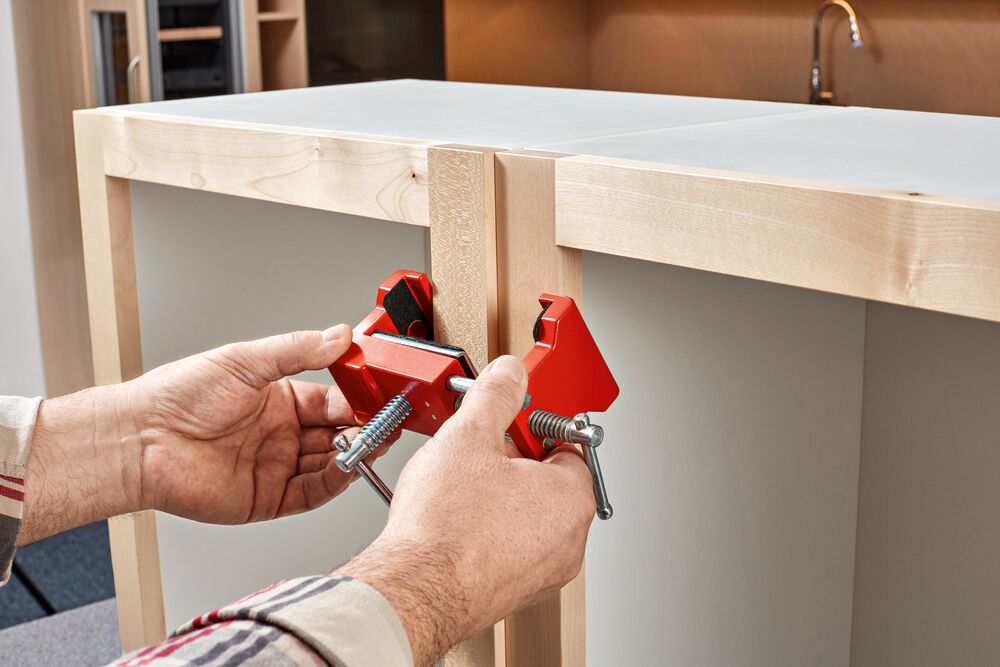

The cabinetry clamp is designed to combine the multiple steps of face frame cabinet installation into one easy process. It works on stiles 1-1/2 to 2 IN. and up to 1-1/4 IN thick (each). Face frame stiles can be tightened, aligned, pre-drilled and fastened while the clamp is held in place. The clamp holds the individual cabinet edges together while also keeping the faces along the joint flush.

There is an integrated pilot-hole drilling guide on one end. This guide flips out of the way so you can drive screws to connect the cabinets without removing or repositioning of the clamp. Professional quality installation is achieved at a fraction of the time compared to the use of more conventional clamps.

Non-marring felt pads are provided for the clamp faces and the alignment plate to protect and cushion points of contact.

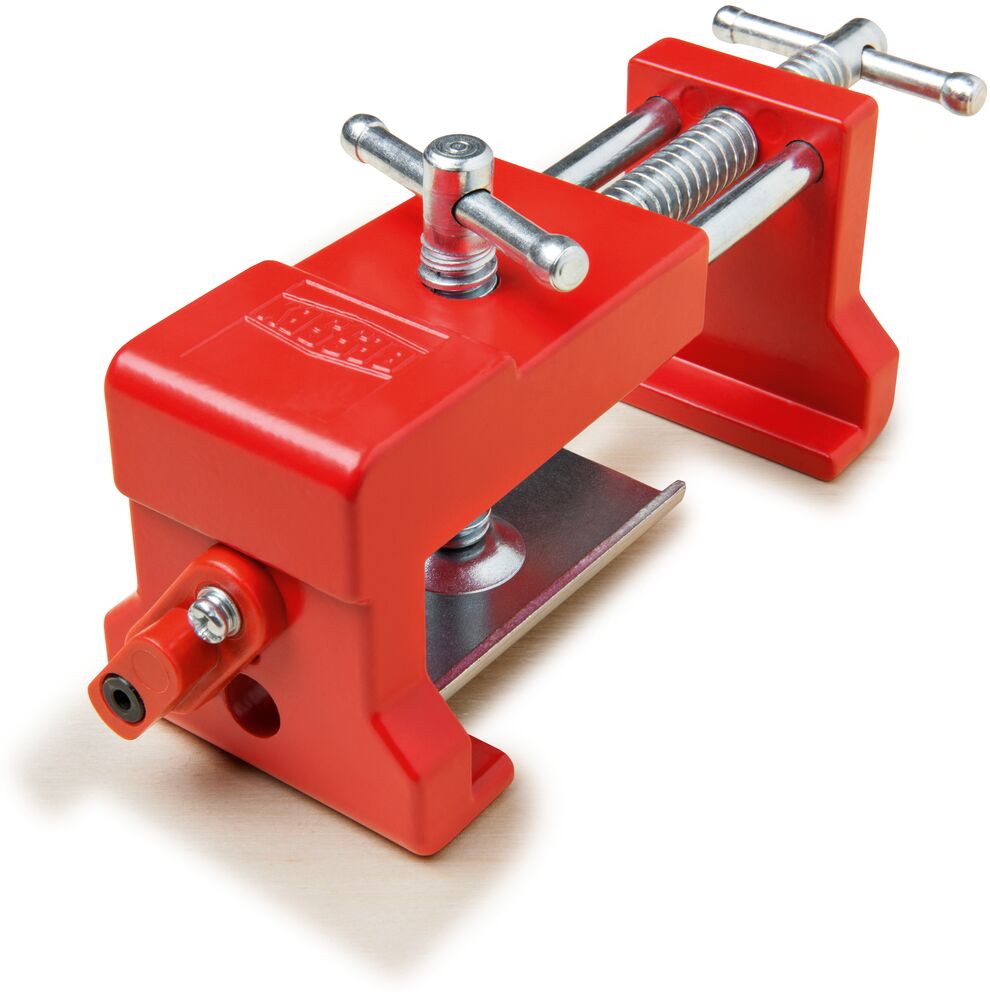

Product Information:

- Aluminum alignment plate

- Steel sliding T-Bars

- Jaw width: 2 IN

- Throat Depth: 2 IN

- Maximum opening 4 IN

BESSEY. Simply better.
