Telescopic support rods STE with pump grip

Product details
  • Stable steel pipe construction in three sizes, adjustment range from 58" to 145"
  • Robust design allows for higher load capacities. PVC pads on top and bottom grab the surface for safe support
  • Quick-slide button for rapid extension and retraction
  • Continuously swivelling contact pads from -45° to +45°
  • Screw holes on contact pads for additional support
Order number Clamping capacity Clamping force at min. extension Clamping force at max. extension Approx. weight
inches lbs lbs lbs
STE98
58-98 770 350 7.46
STE118
67-118 770 240 8.14
STE145
82-145 770 140 9.77
  • Carpentry and woodwork
  • Kitchen construction and shop fitting
  • Staircase construction
  • Shell construction
  • Interior fittings
  • Dry construction
  • DIY
  • Fixes and supports during dry construction
  • Single-worker assembly
  • Read and follow the instruction manual.
  • Steel tube, coated
  • Ergonomic two-component plastic handle for a comfortable grip
  • Lever made of reinforced PA6 plastic
  • Contact surfaces of the pressure plates made of TPU plastic
  • Check the product regularly, at least after ten uses, for damage and proper functioning of all moving parts.
  • Do not use a damaged product.
  • If the rotation function of the pressure plates is impaired, lubricate the thread of the threaded bolt with a commercially available lubricant.

Product video Telescopic support rods

Accessories

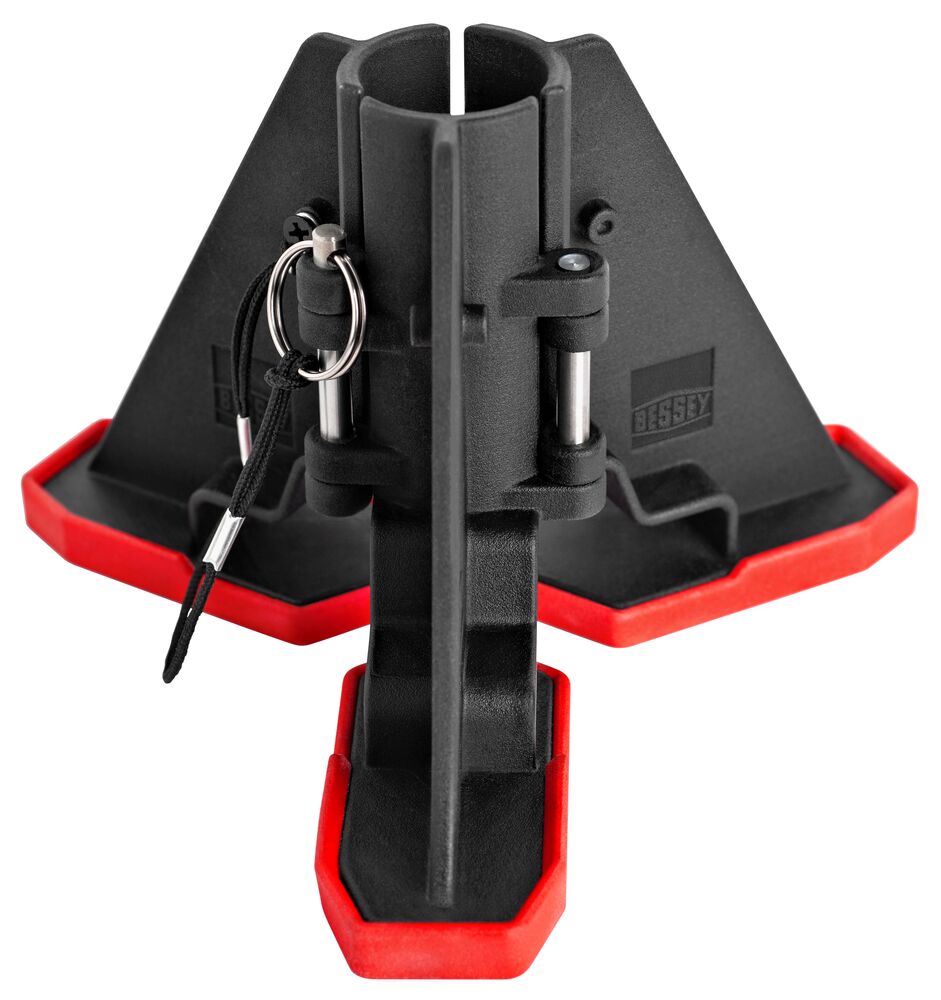

STE Series, Support Stand, STE-TRIPOD
